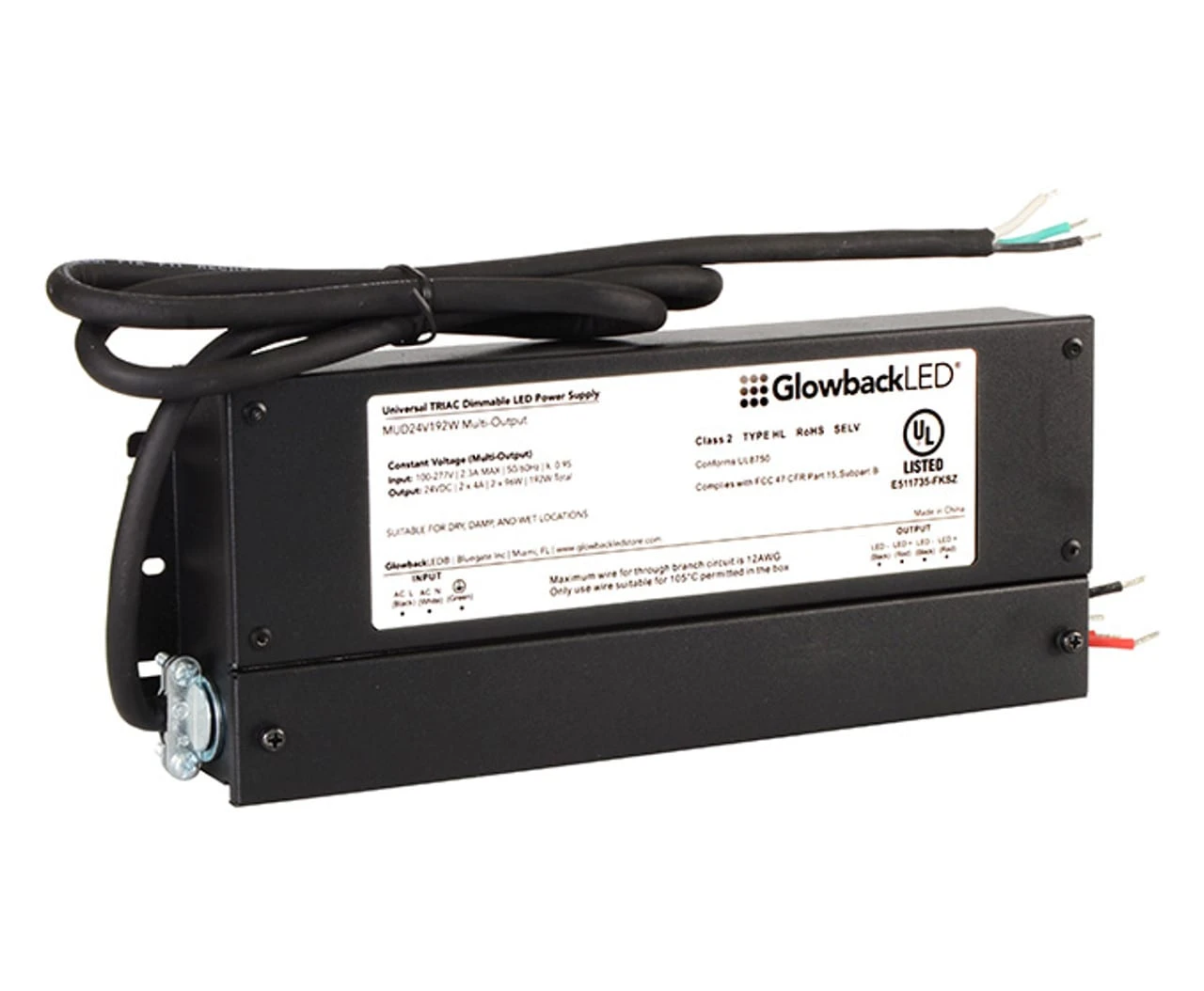

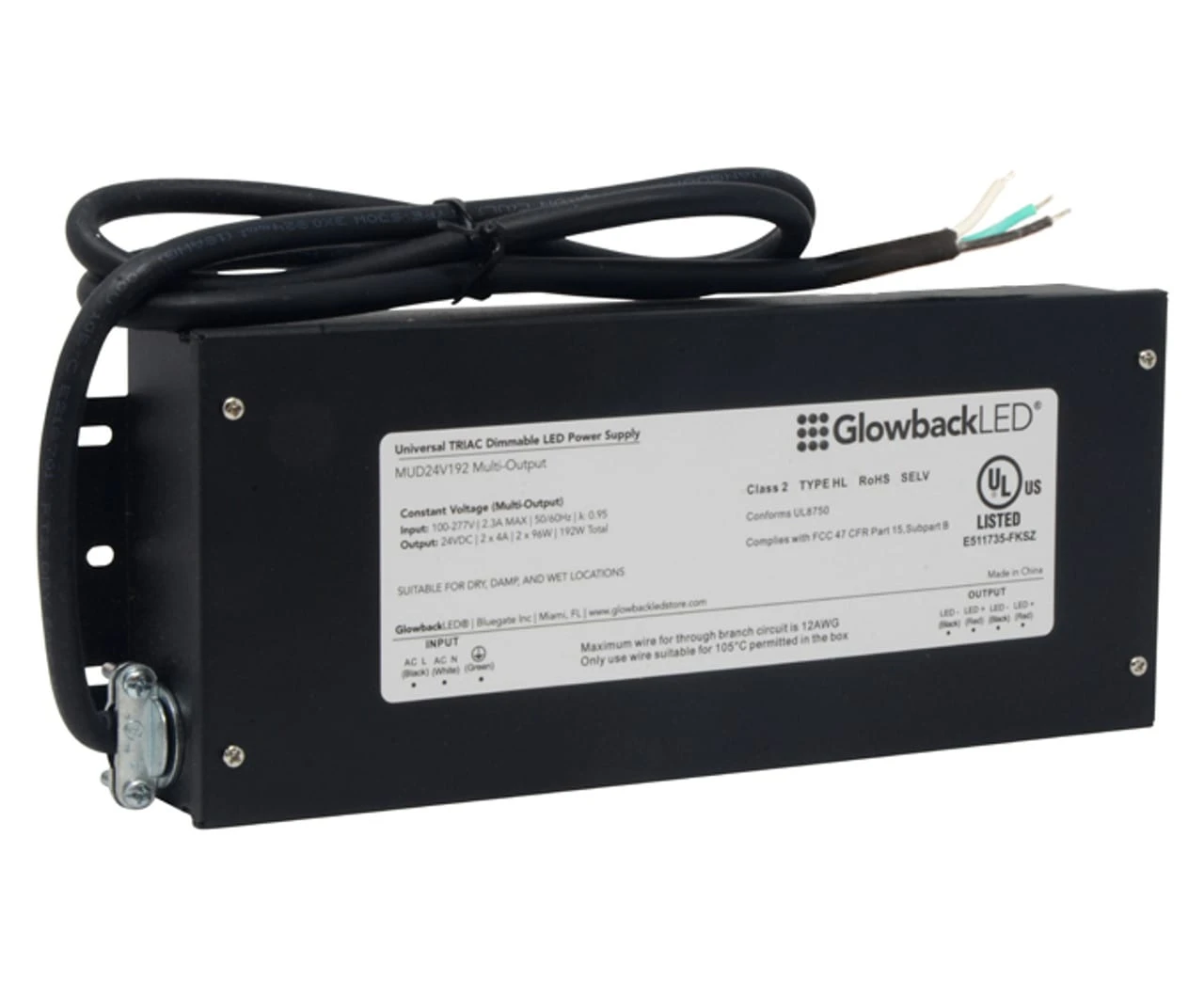

24V 2x96W 192W Universal Dimmable Electronic LED Driver

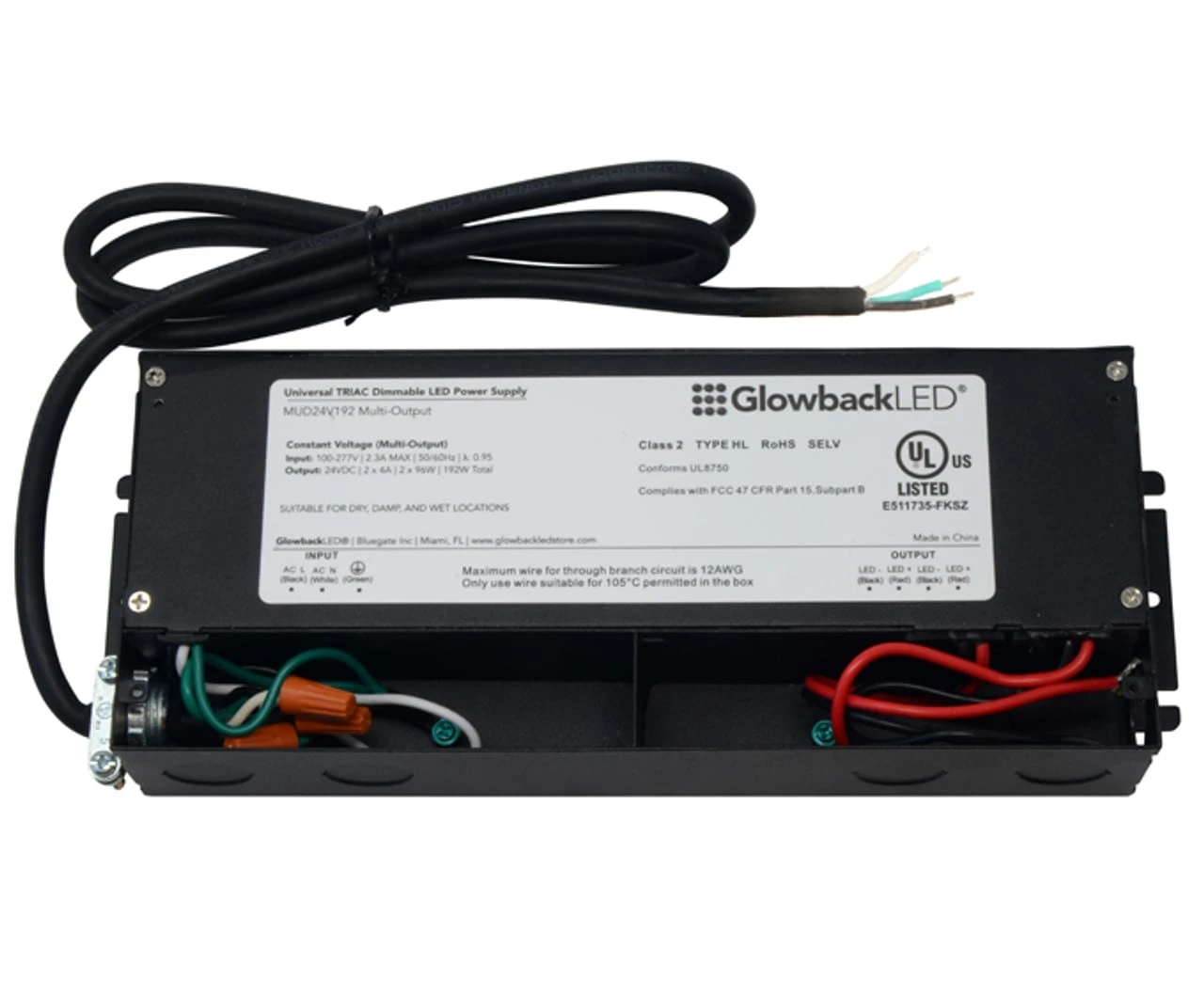

Manufactured exclusively for GlowbackLED, Our new MUD24V192W is a 24V Dimmable LED Power Supply with 2x 96W power outputs, suitable for powering a wide range of LED strip and linear lighting products. Our MUD24V192W can be used with any phase control dimmers (Forward Phase (Triac/MLV) and Reverse Phase (ELV). Unlike our older dimmable LED power supplies our MUD24V192W outputs consistent, flicker-free lighting which can be smoothly dimmed down to 1%. Our MUD24V192W conveniently comes with a 3ft power cord and (US) plug for quick and easy LED strip lighting installations! This Dimmable LED Driver features an integrated wiring compartment, allowing one to make clean connections inside of the power-supply with no need for external junction boxes. With 2x 96W outputs, you get 2 96W power supplies in one, while still retaining the UL-Listing and Class-2 Rating. The slim and compact design makes our MUD24V192W an excellent solution for under-cabinet LED lighting. Last, but certainly not least, our MUD24V192W is UL-Listed and ready for use on any commercial LED lighting project.

Power Supply Operation

LED Power Supplies convert the source or line voltage of your space to either 12 or 24V DC needed to operate your low-voltage , , or . Power Supplies, also known as “LED Drivers” have a rated input voltage and output wattage. We reccomend limiting your load (the sum of the wattage of all the lighting connected) to 80% of the output wattage of the Power Supply. All residences in the US have 110/120VAC line voltage circuits for lighting, but certain commercial spaces have 277VAC lighting circuits. Verify that your Power Supply is rated for 277VAC input voltage if your space requires a 277VAC compatible Power Supply. TRIPLE CHECK YOUR CONNECTIONS before powering up a power-supply, inadertently feeding high voltage to a low-voltage LED strip will cause them to fail. Certian power supplies use the European standard for wire coloring: Brown is Line/”Hot”(Black in US), Blue is Neutral (White in US), and Green/Yellow is Ground (Green in US).
