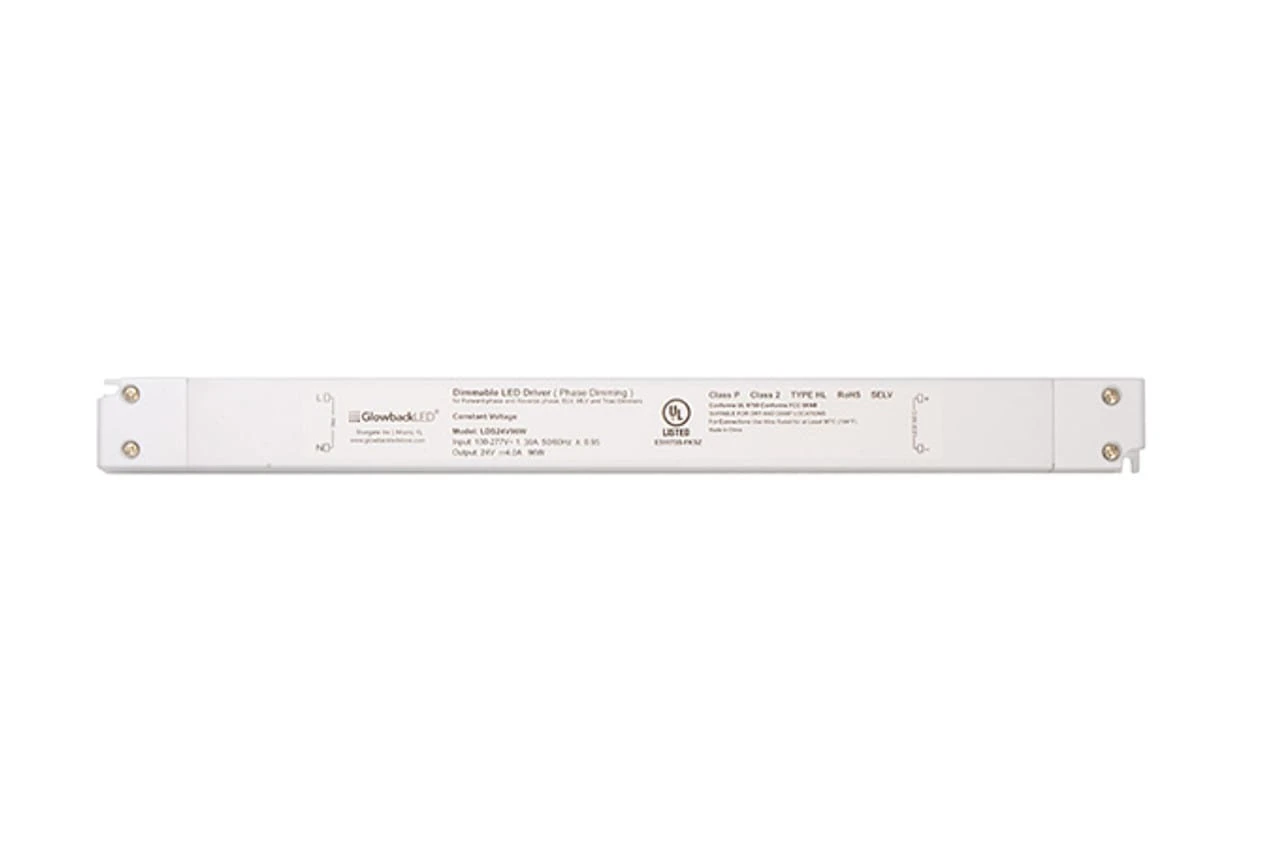

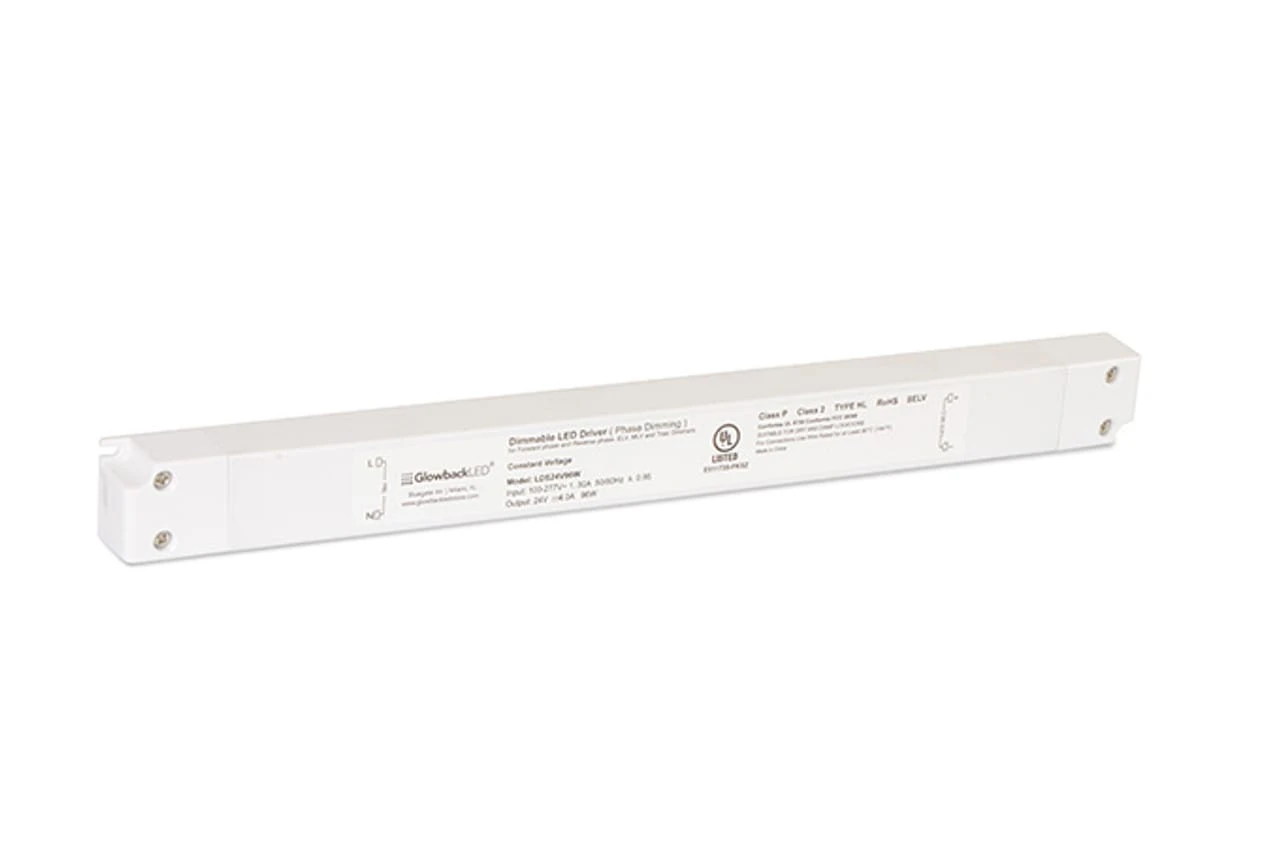

24V 96 Watts Dimmable TRIAC/Phase Slim Linear LED Power Supply

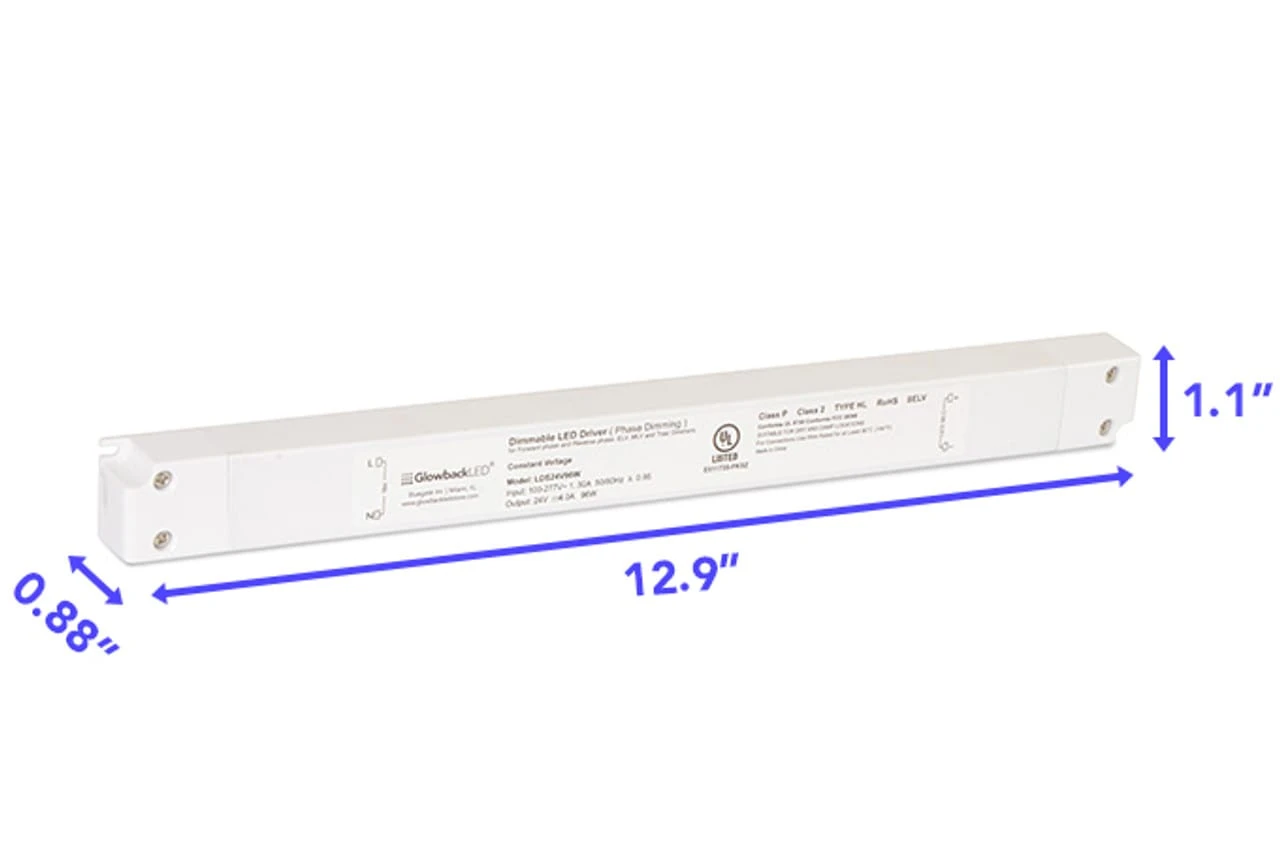

Manufactured exclusively for GlowbackLED, Our new LDS24V96W is a Slim Linear 24V 96W Dimmable LED Power Supply suitable for a wide range of LED strip and linear lighting products. Our LDS24V96W can be used with any phase control dimmers (Forward Phase (Triac/MLV) and Reverse Phase (ELV). Unlike our older dimmable LED power supplies our LDS24V96W outputs consistent, flicker-free lighting which can be smoothly dimmed down to 1%. This Dimmable LED Driver features an integrated wiring compartment, allowing one to make clean connections inside of the power-supply with no need for external junction boxes. This slim, linear design makes our LDS24V96W an excellent solution for powering our inside of our , which has a dedicated slot for housing an LED power supply. The slim linear form factor also makes it a more compact solution for applications with limited space.

Power Supply Operation

LED Power Supplies convert the source or line voltage of your space to either 12 or 24V DC needed to operate your low-voltage , , or . Power Supplies, also known as “LED Drivers” have a rated input voltage and output wattage. We reccomend limiting your load (the sum of the wattage of all the lighting connected) to 80% of the output wattage of the Power Supply. All residences in the US have 110/120VAC line voltage circuits for lighting, but certain commercial spaces have 277VAC lighting circuits. Verify that your Power Supply is rated for 277VAC input voltage if your space requires a 277VAC compatible Power Supply. TRIPLE CHECK YOUR CONNECTIONS before powering up a power-supply, inadertently feeding high voltage to a low-voltage LED strip will cause them to fail. Certian power supplies use the European standard for wire coloring: Brown is Line/”Hot”(Black in US), Blue is Neutral (White in US), and Green/Yellow is Ground (Green in US).
