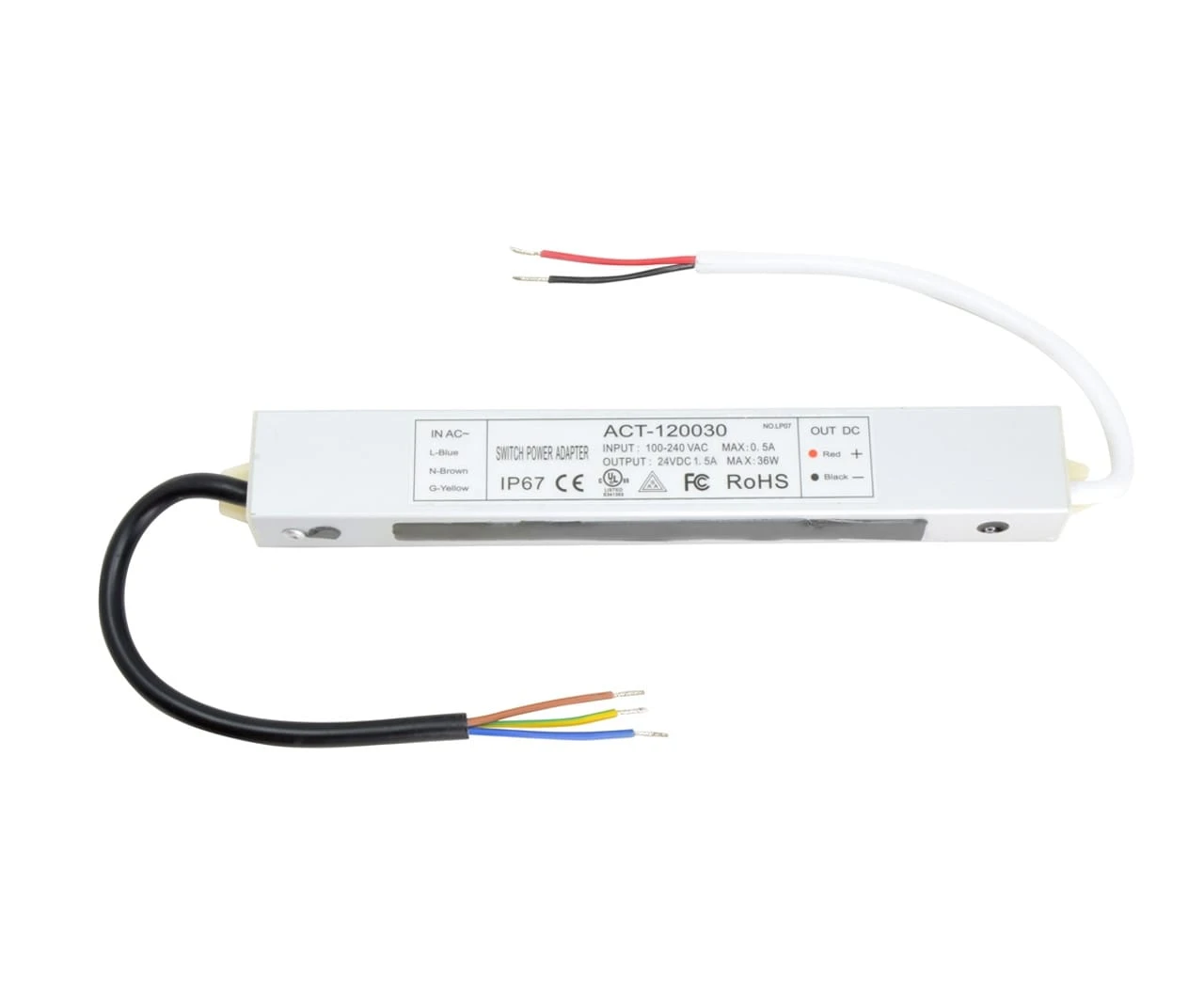

Our 24V | 36W Hardwired Value LED Driver is a high efficiency, UL-listed Waterproof LED power supply for 24V LED strips, LED bars, LED fixtures, and LED puck lights. Universal input voltage means that it accepts 120-240VAC. This LED driver needs to be “hardwired” to your local electrical code standards. This waterproof, UL-Listed LED Driver with one 24VDC output allows one to easily connect up to 36W worth of LED strip lighting in almost any type of environment without having to worry about the lifetime of the power supply.
Features
-
Universal Line-Voltage Input on Slim and Compact Unit
-
Easy wire terminals
-
IP-67 Rated for Outdoor/Damp Locations
-
Durable and Protective Metal Housing
Quick Specs
| Dimensions | 8.0″ x 1.1″ x 0.8″ |
| Input Voltage | 100-240VAC |
| Output Voltage | 24VDC |
| Output Power | 36W (1.5A) |
| Wiring | Hardwired Connections |
| Dimming | Non-Dimmable |
| Environment | IP-67 Waterproof/Suitable for Outdoor Use |
| Listings | UL-Listed, Class-2, RoHs |
Power Supply Operation
LED Power Supplies convert the source or line voltage of your space to either 12 or 24V DC needed to operate your low-voltage , , or . Power Supplies, also known as “LED Drivers” have a rated input voltage and output wattage. We reccomend limiting your load (the sum of the wattage of all the lighting connected) to 80% of the output wattage of the Power Supply. All residences in the US have 110/120VAC line voltage circuits for lighting, but certain commercial spaces have 277VAC lighting circuits. Verify that your Power Supply is rated for 277VAC input voltage if your space requires a 277VAC compatible Power Supply. TRIPLE CHECK YOUR CONNECTIONS before powering up a power-supply, inadertently feeding high voltage to a low-voltage LED strip will cause them to fail. Certian power supplies use the European standard for wire coloring: Brown is Line/”Hot”(Black in US), Blue is Neutral (White in US), and Green/Yellow is Ground (Green in US).
